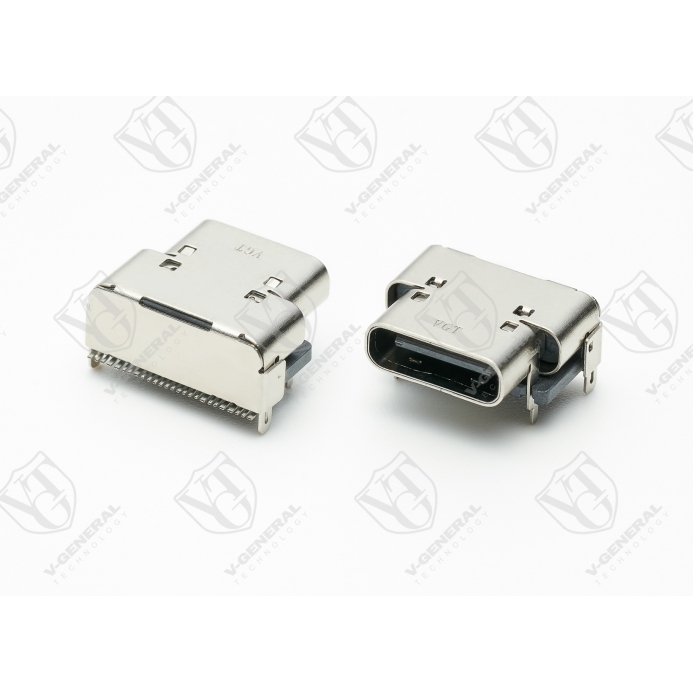

CH.4.13 - USB 3.2 Type C Gen.2
► Improve and reduce EMI / RFI from high frequency signals
► Compatible with USB Type-C Specification
► Compatible with USB Power Delivery & Supports up to 8A max. power supply
► Reversible plug makes it possible to insert both ways
► Lock structure with superior durability
► Large selection of connector variations are available
► SMT Contact Horizontal Receptacle
• Single-row SMT type receptacle connector design with a mounting area space-saving is also the best solution for SMT processes.
► Compliant with Universal Serial Bus Type-C Specification Release 3.2 & Super Speed communication. (USB 3.2 Gen.2)
| Product | CH. | Type | SPEC. | SPEED |
| USB C (Receptacle) | 0.10 mm | Sink | USB 3.2 Gen2 | 10G |
| 1.58mm | Top | USB 3.2 Gen2 | 10G | |
| 3.40mm | Top | USB 3.2 Gen2 | 10G | |
| 4.13mm | Top | USB 3.2 Gen2 | 10G |
