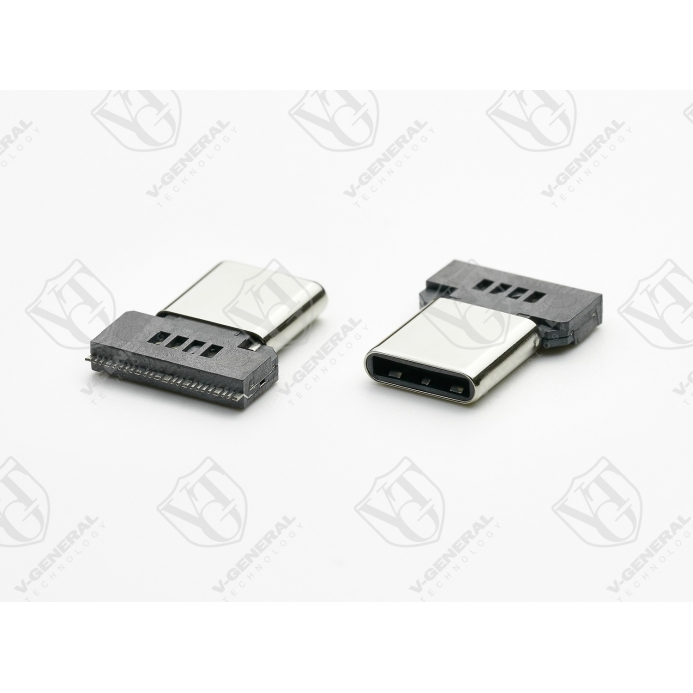

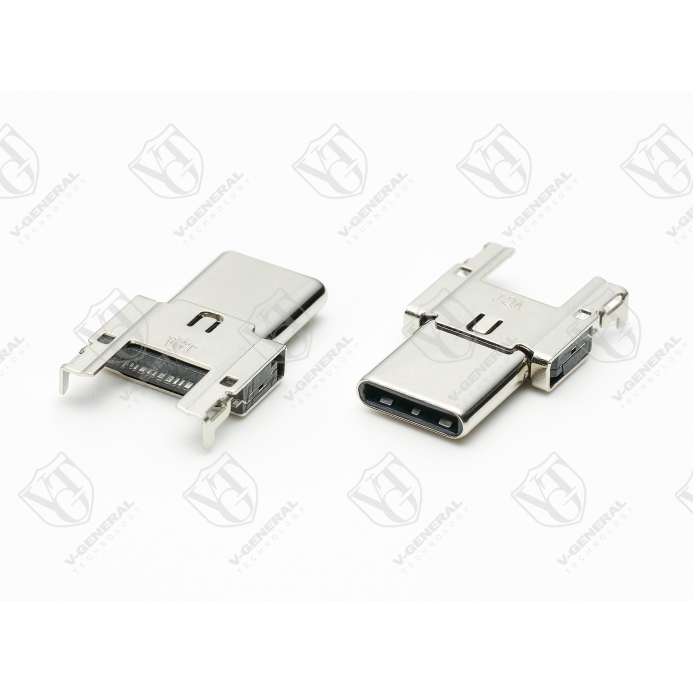

USB Type C Plug

PDF下載
► Improve and reduce EMI / RFI from high frequency signals
► Compatible with USB Type-C Specification
► Compatible with USB Power Delivery & Supports up to 5.3A max. power supply
► Reversible plug makes it possible to insert both ways
► USB 3.2 Gen 2 certification is the highest performance certification possible for plugs, and can be used in USB4 40Gbps certified cable harness.

Product  CH Type SPEC. SPEED
USB C (Plug) 0.075mm  w Shell Dip Sink USB 3.2 Gen  2 10G
0.075mm  w Shell Dip Sink USB 3.2 Gen2 10G
0.7mm  w Shell Dip Sink USB 3.2 Gen 2 10G
USB C (Plug) 0.075mm  w Shell Dip Sink USB 4 Gen 3X2 40G
0.075mm  w Shell Dip Sink USB 4 Gen 3X2 40G
0.7mm  w Shell Dip Sink USB 4 Gen 3X2 40G
